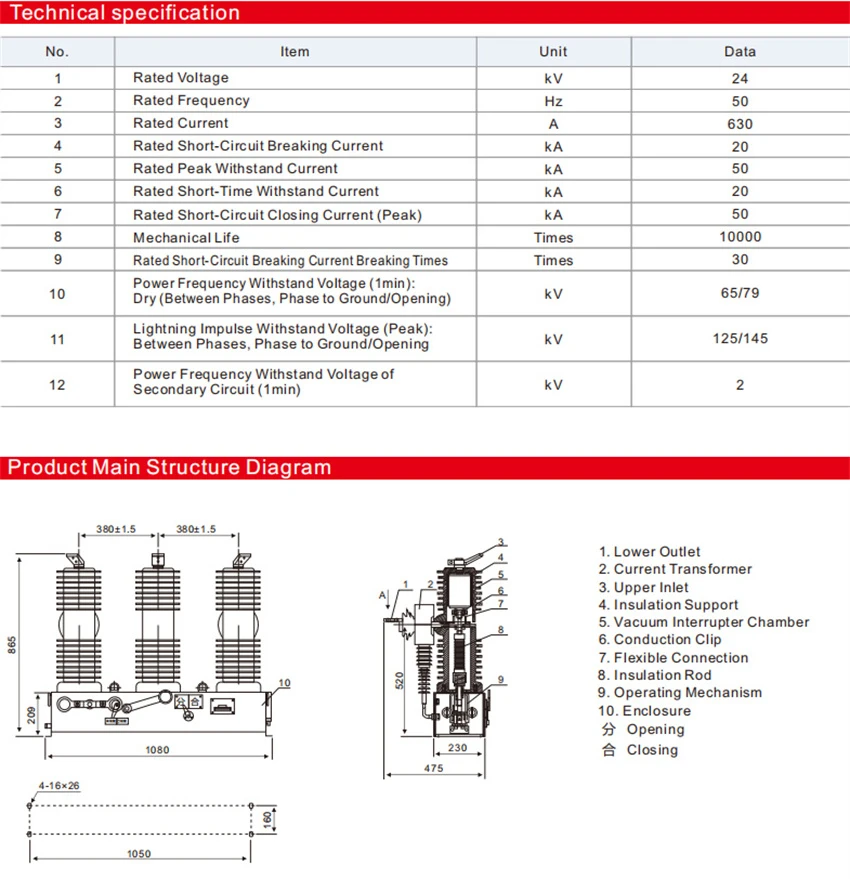

Product details
The ZW32-24 outdoor high-voltage vacuum circuit breaker isdesigned for a rated voltage of 24kV and operates at a frequency of50Hz in three-phase AC.lt serves as outdoor distribution equipmentfor power stations, industrial and mining enterprises, and ruralpower grids with frequent operations. lt can also function as a ringnetwork power supply unit and terminal equipment for thedistribution, control, and protection of electrical equipment. Whencombined with an isolation switch, it can be used as a sectionaswitch. The breaker is primarily used for opening and closing loadcurrents, overload currents, and short-circuit currents in powersystems. lt features a patented solid-sealed vacuum interrupter.external insulation with silicone rubber bushings for long life, highreliability, good weather resistance, easy transportation, and cost-effectiveness.The operating mechanism employs a compact, highlyreliable spring operating mechanism with a simple structure and amechanical life of up to 20,000 operations. lf an advancedpermanent magnet mechanism is used, mechanical performance iseven more stable and reliable. The breaker can be equipped with amanual opening and closing mechanism and can be manuallyoperated on-site when necessary. This breaker, when paired with acontroller, becomes a recloser, enabling remote control, telemetry.remote signaling, and remote adjustment, known as the “fourremote” functions.
Standards
Gb1984″AC High Voltage Circuit Breakers”GB11022 “Common Technical Requirements for High-Voltage Switchgear and Control Equipment Standards”GB311.1-6 “Insulation Coordination for High Voltage Transmission and Transformation Equipment”GB763 “Heating ofAC High Voltage Electrical Apparatus in Long-Term Operation”GB2706 “Dynamic and Thermal Stability Test Methods for AC High Voltage Electrical Apparatus’GB3309 “Mechanical Tests on High-Voltage Switchgear atAmbient TemperatureDL/T593″Common Ordering Technical Conditions for High-Voltage Switchgear”
Ambient condition
Altitude: Up to 2000m
AmbientAir Temperature: -40°C to +40°CWind Speed: ≤34m/s (equivalent to 700Pa on the cylindrical surface)Pollution Level: TlVleve
No frequent severe vibrations; seismicintensity not exceeding 8 degreesNo fire,explosion, or chemical corrosion in the vicinity.

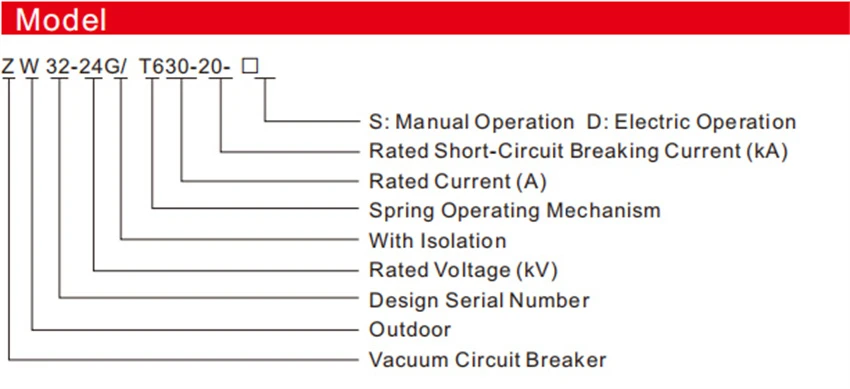

Model
